Customized Boiler Fin Tube Extruded For Economizer , High - Frequency Welding
Product Introduction
Compared to the traditioanal fin tubes or spiral tubes the H-fin tube can greatly expand the heating surface. When the extent of the effect of heat transfer is the same .
The H-fin tube economizer takes up less space. In addition to the Heconomizer, Hsuperheater ,H air heater, and many of other products, The H fin tubes has been included in the “Chinese high-tech product catalog”.
H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface.H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H economizer, which has high efficiency,little resistance,less wear and light weight.
|

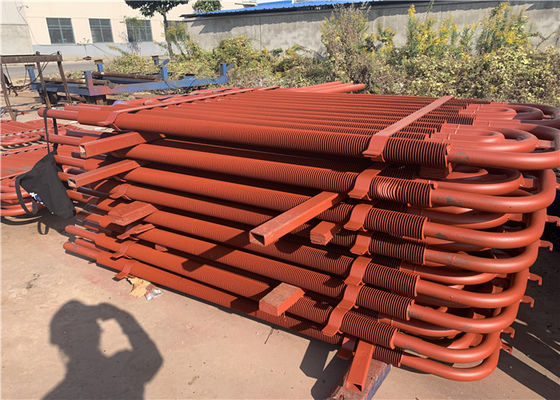

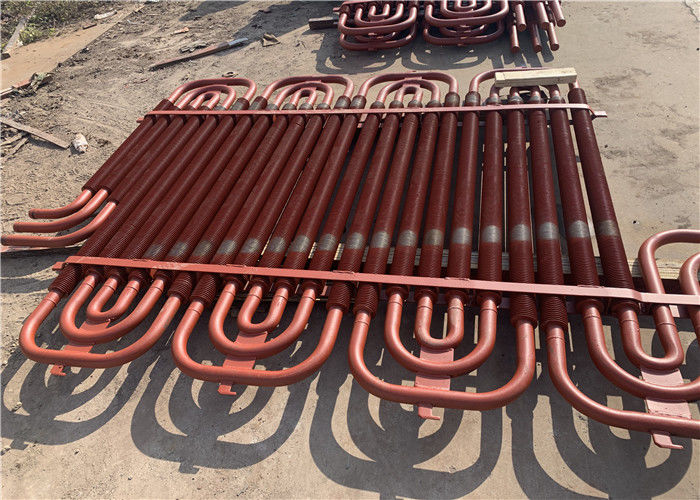

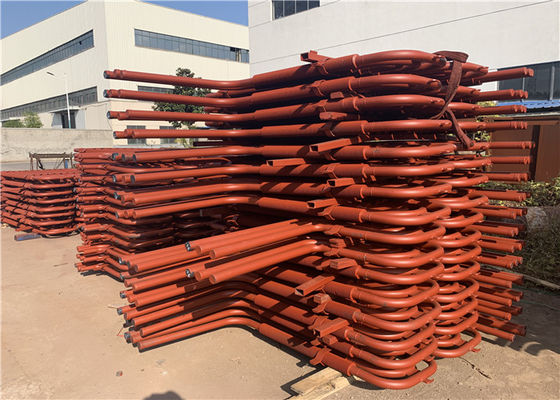

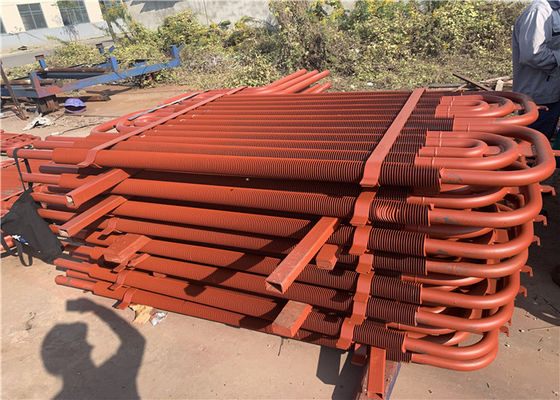

Carbon Steel Titanium Spiral Finned Tube Coil For Boiler Economizer ASME Standard
Product Description
1.Finned Tube Heat Exchangers consist of a shell and finned tubes assembly.
2.Fins are used to increase the effective surface area of heat exchanger tubing.
3.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger, thermic fluid to air heat exchanger, when an extended surface is needed on only one fluid side or when the operating pressure needs to be contained on one fluid side.
Details
1.Our products can be modified according to our customers' needs and the situation.
2.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.
3.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.
Technical parameter
| Medium |
air, flue gas, thermal oil, water, brine, refrigerant, etc. |
| Temperature |
standard heat exchanger to 560 ° C by special materials can be higher |
| Pipe materials |
carbon steel, stainless steel, alloy or special materials |
| Ribs materials |
carbon steel, stainless steel, non-ferrous metal, alloy or special materials |
| Thermal insulation &Surface treatment |
according to customers specification |
Features
1. The equipment body can be designed into many modules to ensure the long term and stable running;
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage
3. Improve the heat transfer efficiency
4. Structure arrangement: In line or staggered arrangement
|
Company Profile
Zhangjiagang Hua Dong Energy Technology Co., Ltd. is a high-tech enterprise specialized in producing all kinds of stainless, carbon and alloy steel tubes and pipes, steel plates which are widely used in the field of boiler&heat exchanger, energy, petrochemical, mining, food, paper, gas and fluid industry. And we have passed the attestations including ASME, TUV, Grade A, ISO9001, EN12952, EN10216, SO3834.
The company is the subsidiary of Zhangjiagang Hua Dong Boiler Co., Ltd, which is the most leading boiler and boiler parts manufacturer in China with a history of 35 years and annual turnover of 110 million U.S.A. dollars. Our products have been exported to over 30 countries like United States, Australia, Vietnam, Pakistan, Albania, Cambodia, India, Indonesia, South Korea, the Philippines, Turkey, Saudi Arab, Germany, Russia, Chile, Syria, Thailand, Bangladesh, France, Algeria, Mongolia and Singapore, Cuba, Iraq, Italy, Spain, Japan, Yugoslavia, Sri Lanka, the Czech republic, kyrgyzstan, Canada, Malaysia, the United Kingdom and so on.
Location:
Our company locates in Zhangjiagang city which is a port city, and is only 120km far away from Shanghai, 60km far away from Suzhou and 60km far away from Wuxi. The traffic is very convenient.
